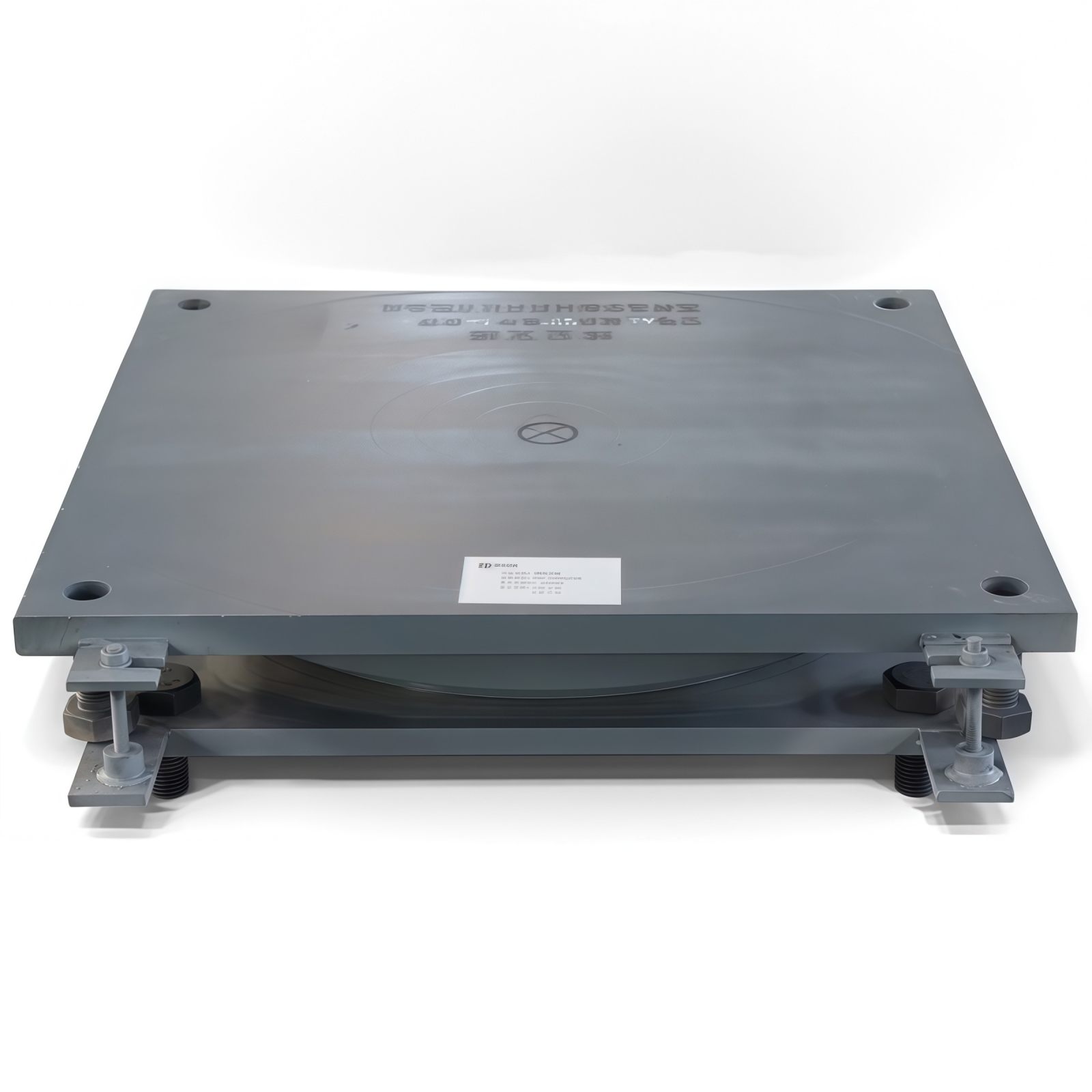

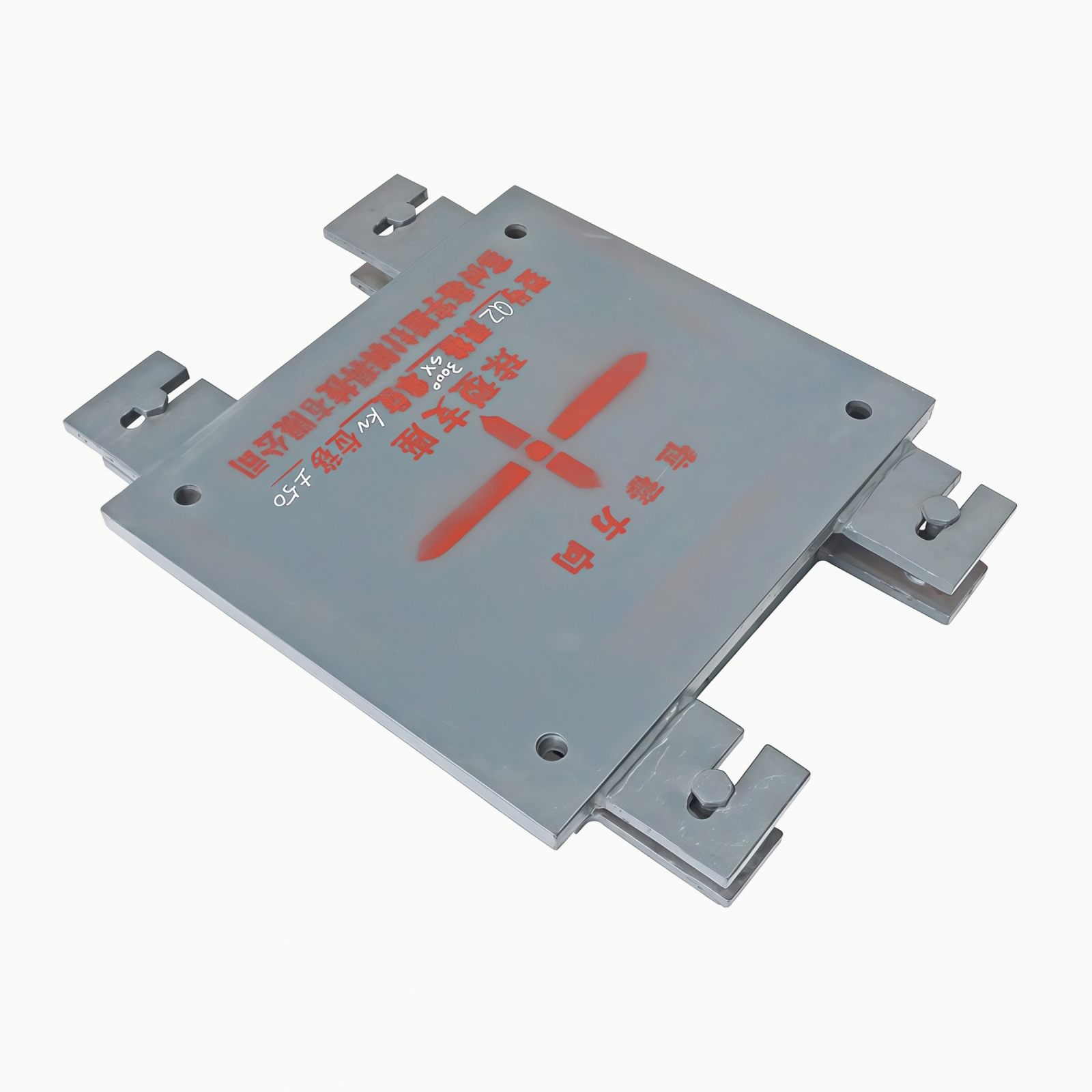

Summary

• GQZ range of bridge spherical bearings are designed according to the current domestic spherical bearing products and the structural characteristics of similar foreign products, and are combined with other favorable performance designs to form the national standard "Bridge Spherical Bearings GB/T17955-2009" supporting product design ..

• Laser cutting / CNC machining /painting/pressure testing

• Very high producing rate

• Professional team & exquisite workmanship

• Considerable after sale service

• Excellent dimension rate

• Very competitive price

Application

The GQZ range of bridge spherical bearings demonstrates particularly evident advantages in bridges with complex stress conditions, such as curved bridges, skew bridges, wide bridges, long-span continuous beam bridges, and rigid frame bridges .

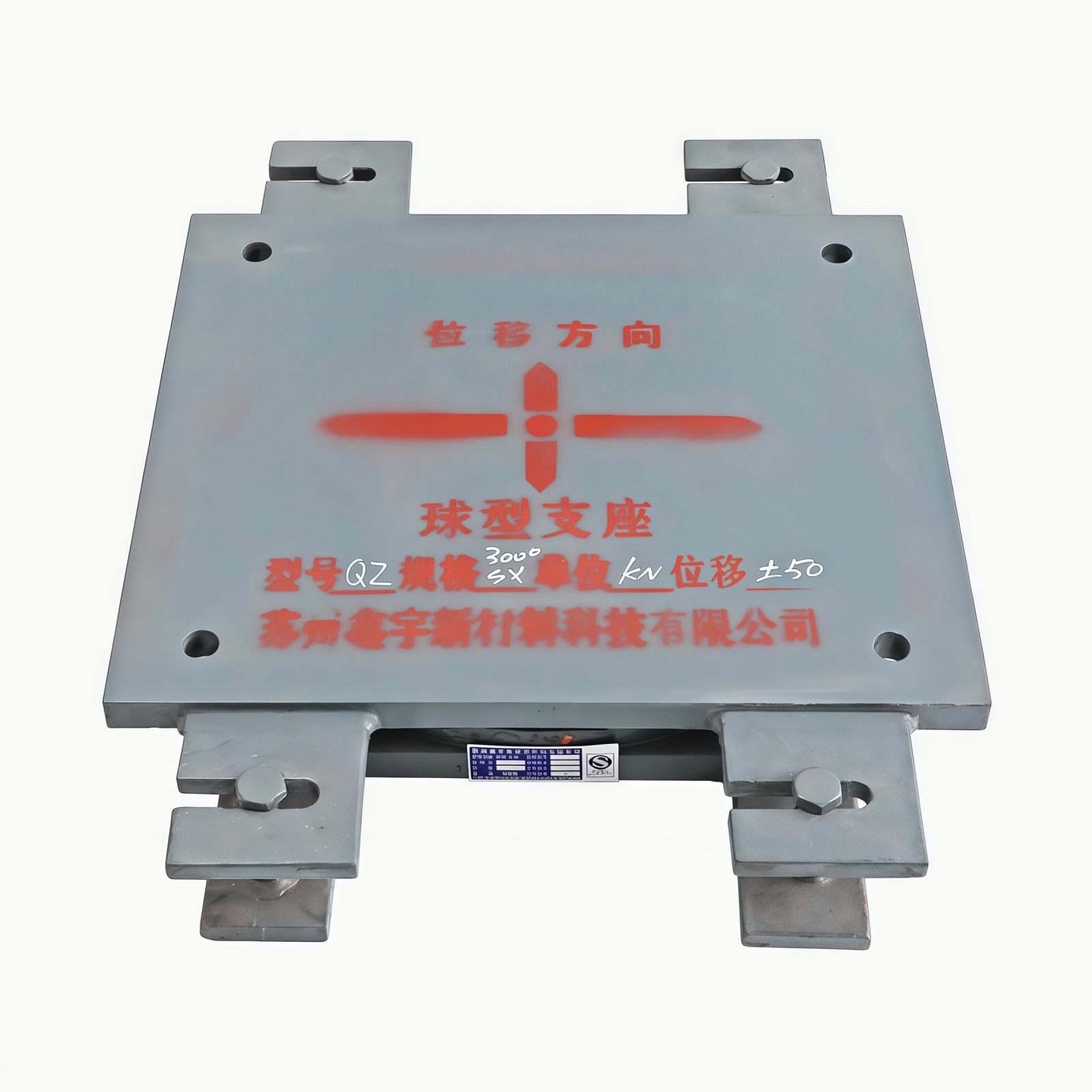

Features

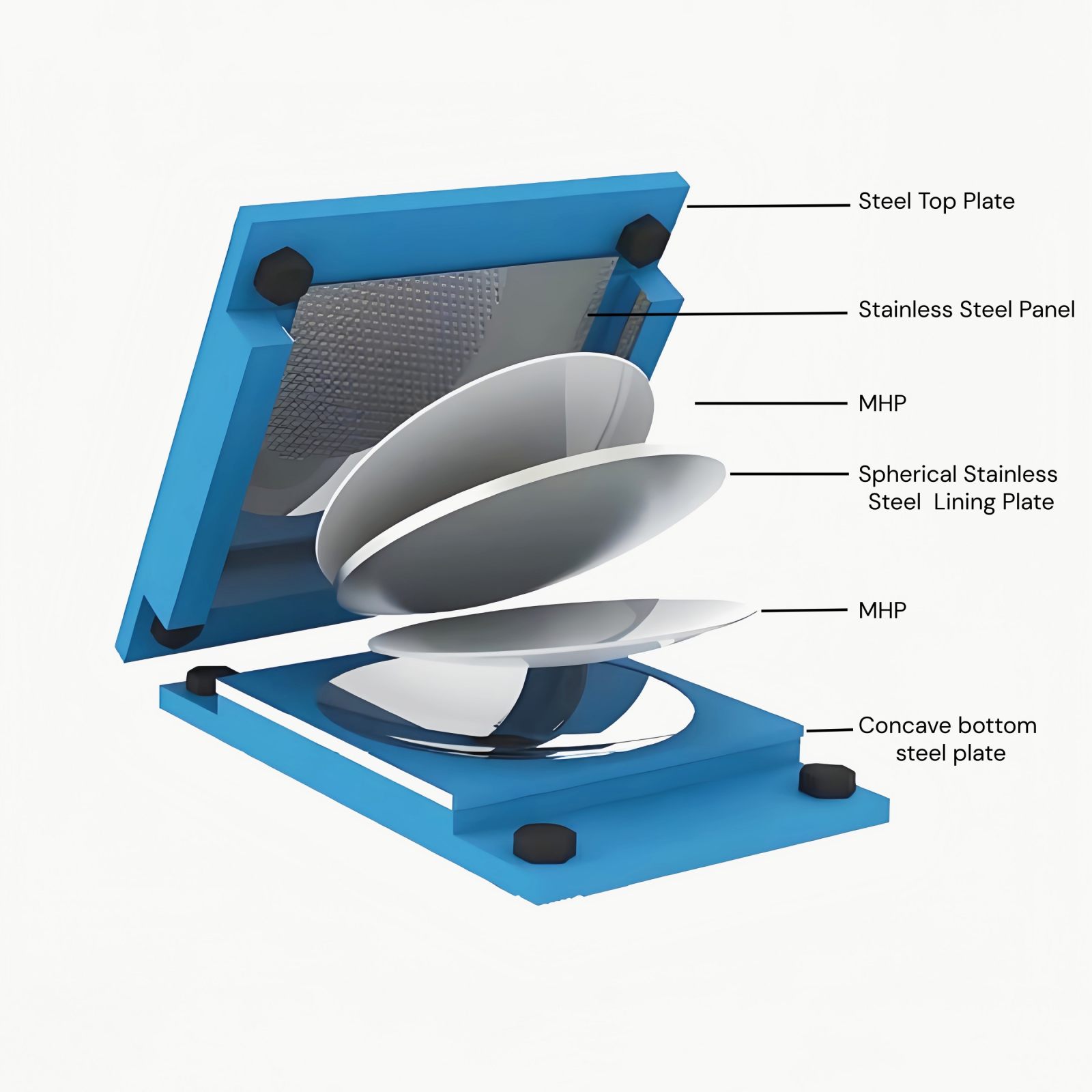

Adopting a spherical contact design, it ensures smooth force flow, effectively avoiding stress concentration and achieving uniform distribution of reaction forces in the substructure. With a fine grading of vertical bearing capacities and a wide coverage range (typically from 1000kN to 60000kN), it can meet the needs of structures ranging from small and medium-sized bridges to long-span structures

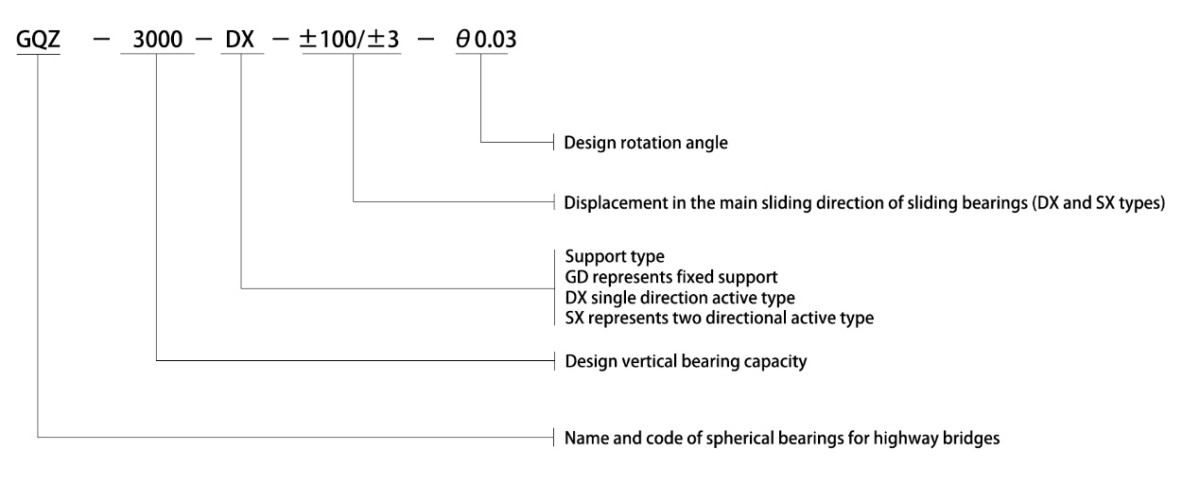

Parameters

1. Load Capacity

1000kN to 60000kN (vertical force)

2. Horizontal Capacity

Typically designed for 10% of the vertical bearing capacity (for fixed and guided /unidirectional movable types):

3. Rotation Angle:

Standard design rotation is generally≥0.02rad to 0.05rad（approx. 1.15°to 2.86°）allowing universal multi-directional rotation.

4. Applicable range of support temperature:

Normal temperature type: -25℃ ~ +60℃; Cold resistant type is -40℃ ~ -25℃.

5. Friction coefficient

Normal temperatures(-25℃ ~ +60℃): ≤0.03; Low temperatures(-40℃ ~-25℃): ≤0.05.
